Casing Bushing And Insert Bowl series

Casing Bushing And Insert Bowl series

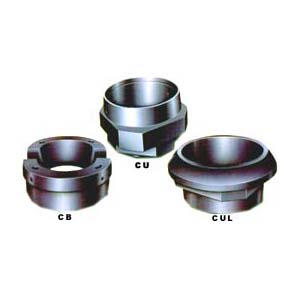

Casing bushing is combined by bushing body and insert bowls. It is suitable for handling casing less than 30 in. There are two types: solid and split. CU and CUL are solid bushing, and CB is split bushing.

Rotary Table Size	Model	Tubular OD（in）
Rotary Table Size	Model	23/8-85/8	95/8-103/4	113/4- 133/8	16	185/8-20	24	26	30
171/2 201/2	CU	Bushing 3102 Insert Bowl 1809	Bushing 3102 Insert Bowl 1902	Bushing 3102	/	/	/	/	/
271/2	CUL	Bushing 3103 Insert Bowl 3105+1809	Bushing 3103 Insert Bowl 3105+1902	Bushing 3103 Insert Bowl 3105	Bushing 3103 Insert Bowl 3104	Bushing 3103	/	/	/
271/2	CB	Bushing 6695 Insert Bowl 6126+6115	Bushing 6695 Insert Bowl 6126+6114	Bushing 6695 Insert Bowl 6126	Bushing 6695 Insert Bowl 6127	Bushing 6695	/	/	/
371/2	CB	Bushing 10187 Insert Bowl 6126+6115	Bushing 10187 Insert Bowl 6126+6114	Bushing 10187 Insert Bowl 6126	Bushing 10187 Insert Bowl 6127	Bushing 10187	Bushing 11253	Bushing 16454	Bushing 11763
