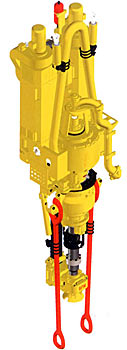

DQ70BSC
DQ70BSC Specifications
| Drive Mode | AC VFD | |
|---|---|---|
| Nominal Drilling Depth |
7,000m (114mm drill pipe) |
22,9668ft (4 1/2 drill pipe) |
|
(API8A/8C PSL 1) Rated Load Capacities |
4,500kN | 500ton(US) |
| Power Supply | 600VAC/50Hz(60Hz) | |
|
Main Motor Rated Power (continuous) |
295kW x 2 | 400HP x 2 |
| Rotary Speed | 0-200r/min | |
|
Drilling Torque (continuous) |
50kN . m | 36,900lbf . ft |
| Maximum Torque of Break-Out | 75kN . m | 55,300lbf . ft |
| Backup Tong Range | 87-220 mm |
2 7/8-6 5/8 in (drill pipe) |
| Hydraulic System Working Pressure | 16 MPa | 2,280 psi |
| Mud Criculating Diameter | 75 mm | 3 in |
| Rated Criculating Pressure | 35 Mpa | 5,000 psi |
| Main Body Working Height | 6.1 m | 20 ft |
| Main Body Width | 1,663 mm | 5.46 ft |
| Distance of Guide Rail to the Center of Well | 930 mm | 3.05 ft |
