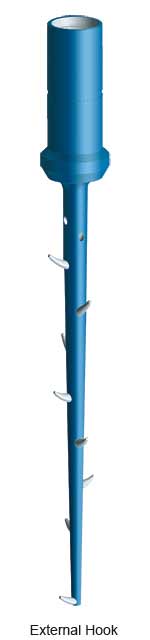

External Hook
The External Hook is used inside casings or tubings to catch all kinds of ropes,lifting bails,hollow short cylinders,short rope slings such as wirelines,logging steel pieces,cables,etc.
Specifications - External Hook
|
Model |
Max. O.D.(mm) |
Connection(in) |
Catch size(in) |
|---|---|---|---|
|
WG73 |
73 |
2 3/8 Tubing coupling |
3 1/2 Tubing |
|
WG95 |
95 |
NC26 |
4 1/2 Tubing |
|
WG114 |
114 |
NC31 |
5 1/2 Casing |
|
WG136 |
136 |
NC31 |
6 5/8 Casing |
|
WG150 |
150 |
NC38 |
7 Casing |
|
WG176 |
176 |
NC38 |
8 5/8 Casing |
|
WG190 |
190 |
NC38 |
9 5/8 Casing |
