Hydraulic Bucking unit

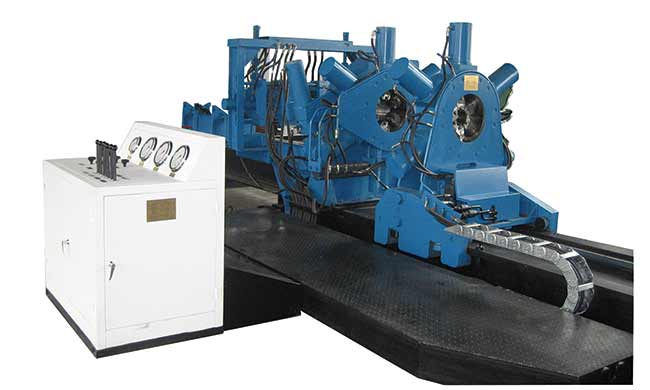

TIANHE YXQ16-II Make Up & Break Out Machine is a self-contained hydraulic drive unit which is designed for fast and accurately make up or break out the threaded connections of tubular tools and motors in either workshop or oil field location.
FEATURES:
- Patent quick rotation unit;
- 2 7/8”to 15 1/4" Diameter Capacity;
- Synchronized Clamp Cylinders in Movable Chuck and Shock Screwing Chuck;
- 360ºContinuous Rotation Headstock is optional.
Specifications-YXQ16-II MAKE UP & BREAK OUT MACHINE
|
Model |
|
YXQ16-II-320 |
YXQ16-II-400 |
|---|---|---|---|
|
Chucking Capacity |
|
73mm~340mm |
73mm~390mm |
|
Motor power |
|
15kw |
15kw |
|
Motor speed |
|
1500rpm |
1500rpm |
|
Max. make-up torque |
|
150KN.m |
150KN.m |
|
Max break-out torque |
|
180KN.m |
180KN.m |
|
Stroke for push/pull cylinder |
|
1500mm |
1500mm |
|
Max tons for push/pull cylinder |
|
150KN |
150KN |
|
Quick Operation torque |
|
2.5～4.0KN.m |
2.5～4.0KN.m |
Construction

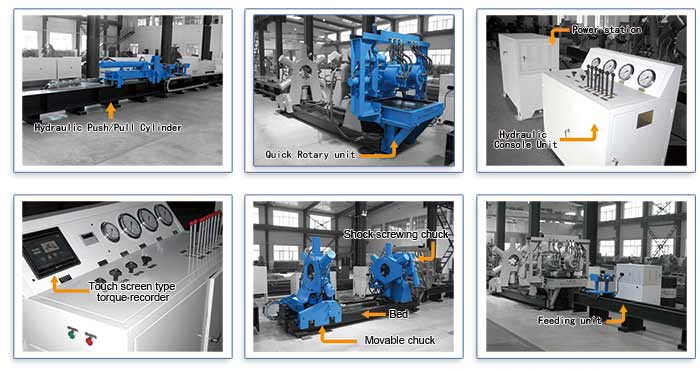

The standard configuration of TIANHE YXQ16-II make up & break out machine consists of a bed that complete with movable chuck, shock screwing chuck, quick rotation unit, a hydraulic Console Unit and a power station.
Hydraulic Push/Pull Cylinder, Feeding unit, Touch screen type torque recorder are available on request.
Standard Configuration
|
Adjustable Tong |
Weight |
1500kg |
1450kg |
|---|---|---|---|
|
Shock screwing Tong |
Weight |
1300kg |
1250kg |
|
Quick Rotary unit |
Weight |
1000kg |
1000kg |
|
Bed |
Weight |
3000kg |
3000kg |
|
Hydraulic Console Unit |
Weight |
300kg |
300kg |
|
Power station |
Weight |
300kg |
300kg |
Optional Unit
|
Feeding unit (Standard 4 meters) |
Weight |
600kg |
600kg |
|---|---|---|---|
|
Push-pull unit (Standard 12 meters) |
Weight |
2500kg |
2500kg |
|
Touch screen type torque recorder |
Weight |
20kg |
20kg |
