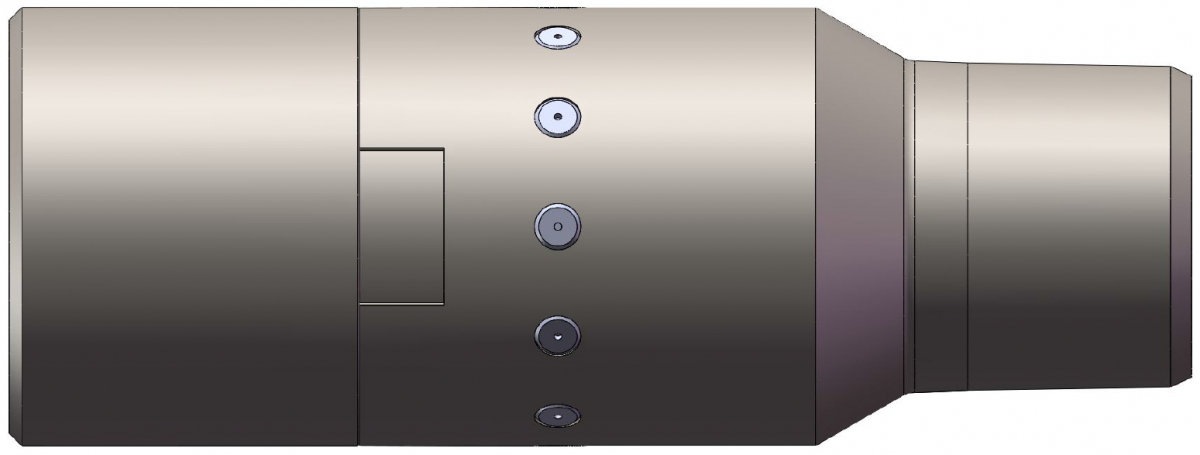

Mechanical Releasing Tool
-
Structure feature
When Packer or Bridge plug run to determined section and after setting, pull up string tool to cut shear pin, disconnect string tools above Packer or Bridge plug, to achieve releasing.
-
Technical specification
OD (mm) ID(mm) Length(mm) Releasing power(KN) Thread connection Ф104 Ф60 280 30~120 2 7/8’’EUE.B×P
