QD Pneumatic Casing
 |
 |

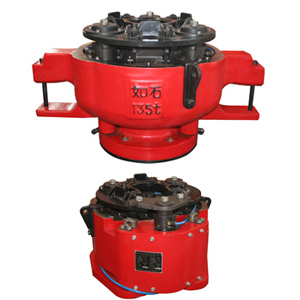

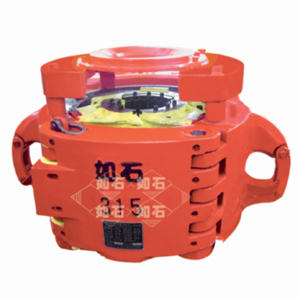

| QD 135 PNEUMATIC CASING ELEVATOR/SPIDER | QD 315 PNEUMATIC CASING ELEVATOR/SPIDER |
 |
 |

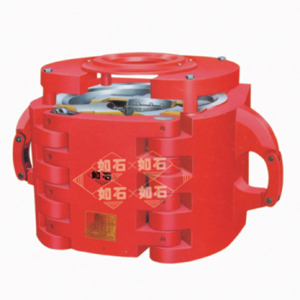

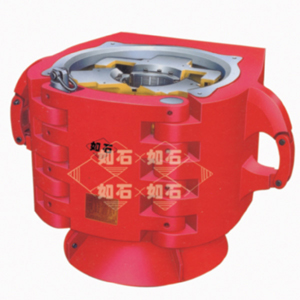

| QD450 PNEUMATIC CASING ELEVATOR/SPIDER | QD450 PNEUMATIC CASING SPIDER |
QD pneumatic casing elevator/spider is applicable for casing of 60~622mm(23/8~241/2 in) It features labor saving, safe and pneumatic operation. It is a kind of ideal tool for casing operation.It is designed and manufactured according to API Spec 8C “Specification For Drilling and Production Hoisting Equipment”.
| Model | QD622-450 (API500) | QD340-450 (API500) | QD340-315 (API350) | QD140-135 (API150) | ||
|---|---|---|---|---|---|---|
|
Applicablerange
|
mm | 324-622 | 113-340 | 113-340 | 60-139.7 | |
| in | 123/4 ～241/2 | 41/2 -133/8 | 41/2 -133/8 | 23/8 -51/2 | ||
|
Ratedload
|
kN | 4500 | 4500 | 3150 | 1350(31/2) 900(51/2) | |
| USton | 500 | 500 | 350 | 150(31/2) 100(51/2) | ||
| Pressure | MPa | 0.5-0.9 | 0.5-0.9 | 0.5-0.9 | 0.5-0.9 | |
| psi | 72-130 | 72-130 | 72-130 | 72-130 | ||
| Size | elevator | mm | 1886 ×1470 ×1070 | 1390 ×1290 ×915 | 1335 ×1040 ×806 | 990×730×550 |
| in | 74.3 ×57.9 ×42.1 | 55 ×51 ×36 | 52.5× 41× 31.7 | 39 ×28.7 ×21.6 | ||
|
spider |
mm | 1886 ×1470 ×970 | 1390 ×1290 ×970 | 1335× 1040×872 | 810 ×730 ×560 | |
| in | 74.3 ×57.9 ×38.2 | 55 ×51 ×38 | 52.5 ×41 ×34.2 | 31.9× 28.7×22 | ||
| Weight | kg | 12000 | 9900 | 7550 | 1430 | |
| lb | 26450 | 21820 | 16640 | 3152 | ||
