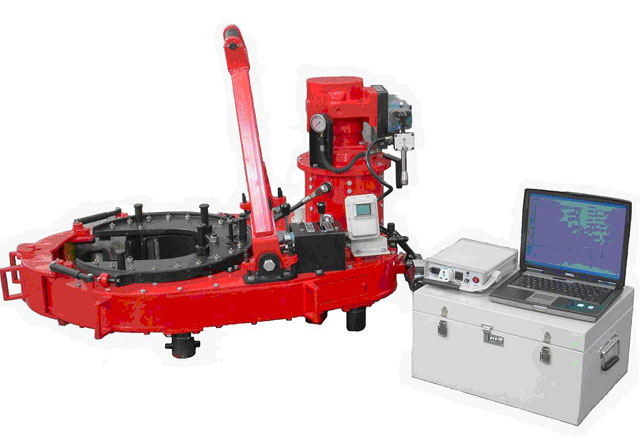

TQ340-35(Y) casing tong
|
Model |
TQ340-35 |
TQ340-35Y |
||
|---|---|---|---|---|
|
Size range |
mm |
114.3～340 |
114.3～340 |
|
|
in |
41/2～133/8 |
41/2～133/8 |
||
|
Max. Pressure |
MPa |
18 |
20 |
|
|
psi |
2610 |
2900 |
||
|
Flow Working |
L/min |
110～160 |
110～170 |
|
|
gpm |
29.3～42.7 |
29.3～45.4 |
||
|
Air pressure |
MPa |
0.5～0.9 |
— |
|
|
psi |
72～130 |
|||
|
Max. |
Hi. gear |
kN.m |
2.5～3 |
3.5～6 |
|
ft.lbf |
1844～2210 |
2580～4425 |
||
|
Mid.gear |
kN.m |
6.0～7.5 |
— |
|
|
ft.lbf |
4425～5530 |
|||
|
Low gear |
kN.m |
32～40 |
22～37 |
|
|
ft.lbf |
23600～29500 |
16225～27285 |
||
|
Speed |
Hi. gear |
rpm |
60～86 |
50～90 |
|
Mid.gear |
rpm |
21～30 |
— |
|
|
Low gear |
rpm |
3.6～5.3 |
8～14 |
|
|
Lifting distance |
mm |
— |
622 |
|
|
in |
24.5 |
|||
|
Size |
mm |
1580×900 |
1580×900 |
|
|
in |
62.2×35.4 |
62.2×35.4 |
||
|
Weight |
kg |
780 |
760 |
|
|
lb |
1720 |
1670 |
||
