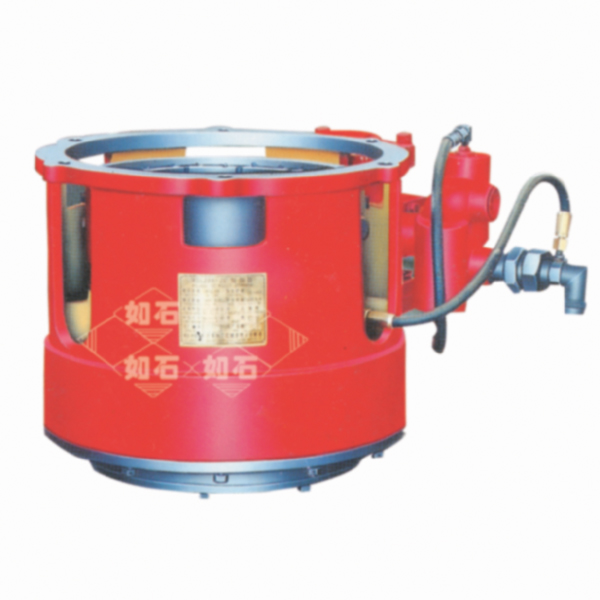

XSL Pneumatic Spinner
|
Model |
XSL160.2C |
XSL225.2C |
XSL315.2C |
XSL450.2C |
|
|---|---|---|---|---|---|
|
Air Pressure |
MPa |
0.7～0.9 |
0.7～0.9 |
0.7～0.9 |
0.7～0.9 |
|
psi |
101～130 |
101～130 |
101～130 |
101～130 |
|
|
Rated Torque |
N.m |
1300 |
1600 |
1600 |
1600 |
|
ft.lbf |
959 |
1180 |
1180 |
1180 |
|
|
Brake Torque |
N.m |
1600 |
2500 |
2500 |
2500 |
|
ft.lbf |
1180 |
1840 |
1840 |
1840 |
|
|
Rated Speed |
rpm |
80 |
70 |
70 |
70 |
|
Rotating Direction |
|
单向 |
双向 |
双向 |
双向 |
|
Size |
mm |
608×450×440 |
740×565×475 |
740×565×475 |
740×565×475 |
|
in |
24×18×17 |
29×21×19 |
29×21×19 |
29×21×19 |
|
|
Weight |
kg |
218 |
272 |
272 |
272 |
|
lb |
480 |
600 |
600 |
600 |
|
|
Suited For |
SL135、SL170 |
SL225 |
SL315 |
SL450 |
|
