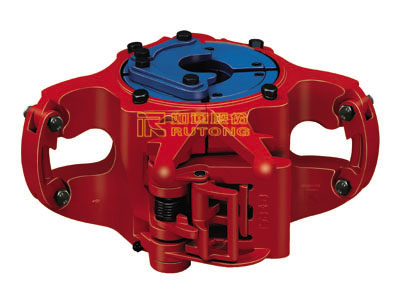

Y Series Slip Type Elevator
The slip type elevator is an indispensable tool in holding and hoisting drilling pipes, casing and tubing in the oil drilling and well tripping operation. It’s especially suitable for the hoisting of integrated tubing sub, integral joint casing and electric submersible pump column. The products shall be designed and manufactured according to the requirements in API Spec
|
Model |
Size |
Rated Cap. |
|
|
mm（in） |
kN |
short Tons |
|
|
HYT |
60.3-88.9（23/8-31/2） |
1350 |
150 |
|
YT |
33.4-88.9（1.315-31/2） |
675 |
75 |
|
MYT |
33.4-73（1.315-27/8） |
360 |
40 |
|
LYT |
26.7-52.4（1.05-11/16） |
180 |
20 |
|
HYC |
88.9-139.7（31/2-75/8） |
1800 |
200 |
|
MYC |
88.9-117.8（31/2-7） |
1125 |
125 |
|
YC |
88.9-117.8（31/2-7） |
675 |
75 |
