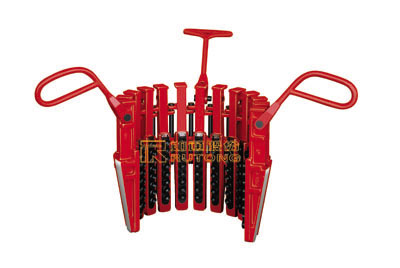

Drill Collar Slip Type DCS
There are three types of DCS Drill Collar Slips: S, R and L. They can accommodate drill collars from
|
MODEL |
DCS-S |
DCS-R |
DCS-L |
||||||||
|
DC OD |
in |
3-4 |
4-47/8 |
41/2-6 |
51/2-7 |
63/4-
81/4 |
8-
91/2 |
81/2-
10 |
91/4-
111/4 |
11-
123/4 |
12-
14 |
|
mm |
76.2-
101.6 |
101.6-
123.8 |
114.3-
152.4 |
139.7-
177.8 |
171.4-
209.6 |
203.2-
241.3 |
215.9-
254 |
235-
285.7 |
279.4-
323.9 |
304.8-
355.6 |
|
|
Weighi |
kg |
51 |
47 |
54 |
51 |
70 |
78 |
84 |
90 |
116 |
107 |
|
lb |
112 |
103 |
120 |
112 |
154 |
173 |
185 |
198 |
256 |
237 |
|
|
Use in insert bowl No. |
API or No.3 |
No.2 |
No.1 |
||||||||
 |
 |
 |
 |
