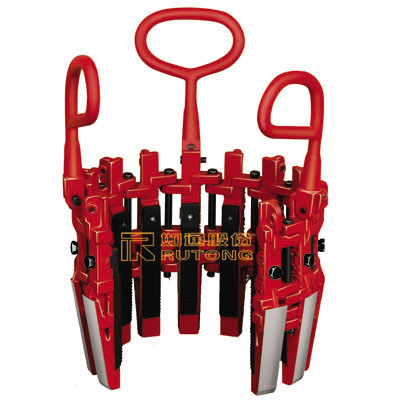

Drill Collar Slip Type WT
Drill Collar Slips Type WT can accommodate drill collars from 4.1/
|
Model |
WT41/2-6 |
WT51/2-7 |
WT63/4-81/4 |
WT8-91/2 |
|
|
DC OD |
in |
41/2-6 |
51/2-7 |
63/4-81/4 |
8-91/2 |
|
mm |
114.3-152.4 |
139.7-177.8 |
171.4-209.6 |
203.2-241.3 |
|
|
Weight |
kg |
49 |
46 |
42 |
39 |
|
lb |
108 |
101 |
92 |
86 |
|
|
Use in insert bowl No. |
API or No.3 |
||||
|
Max. Load |
40tons |
||||
 |
 |
 |
 |
